T120N Nickel Diamond Trapeze Tailpiece for Gibson L-50, L48, ES-125, ES-330

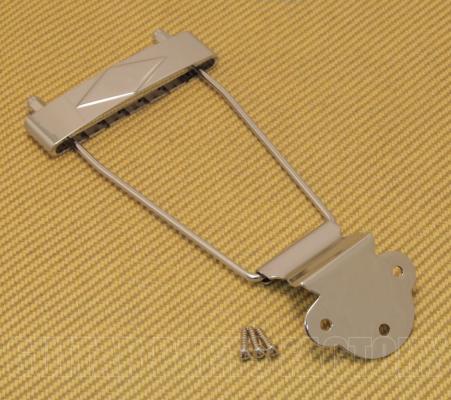

Nickel trapeze tailpiece with a diamond. For Gibson guitars including the following models- L-50, L48, ES-125, ES-330, etc. Please make sure to check the specs to see if they match your instrument to verify it is the correct replacement. Overall length of Tailpiece not including hinge = 4 5/8 inches. Side to Side width at bar = 3 19/64 inches. Width of string bar = 47/64 inches. String Spacing at Bar = 1 61/64 inches. Important Hinge/Mounting Specs: Mounting Area of Hinge length = 1 1/2 inches. Mounting Area of Hinge Width - 2 inches. Mounting hole location bottom center = 11/32 inch from bottom edge. Two Mounting hole locations from side edges = 5/16 inches. Two mounting hole locations Apart from eachother = 1 25/64 inches. Upper side of hinge length = 1 1/8 inches. Upper side of Hinge width = 1 25/64 inches.

  • Brands Aftermarket
  • Item #: T120N
  • Availability: In Stock
  • $22.00
