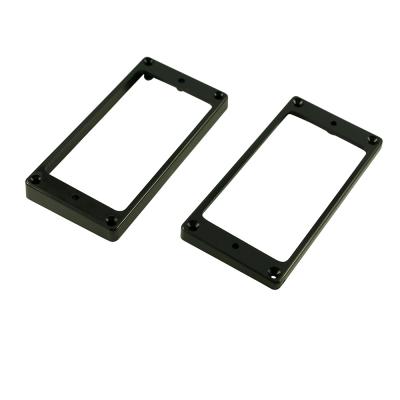

• HMRB-SET Plastic Black Flat Humbucker Pickup Ring Set for Guitar

HMRB-SET Plastic Black Flat Humbucker Pickup Ring Set for Guitar

Black, plastic, flat, humbucker mounting ring set. Typical set of rings found on most 2 humbucker guitars. It is comprised of 1 high and 1 low ring.

High Flat:

This tall plastic humbucker mounting ring is generally used in the bridge position on a two or three pickup guitar.

This mounting ring is angled in height so the side closest to bridge is taller than the side closest to the neck or fretboard.

Low Flat:

This is the shortest plastic humbucker mounting ring we stock and is generally used in the neck position.

This is angled in height so side closest to bridge is taller than the side closest to the neck or fretboard.

Flat Set:

Low = 9/64 inches - 13/64 inches

High = 19/64 inches- 3/8 inches


Interior Dimensions:

Pickup cutout width = 1.5 inches (38.2mm)

Pickup cutout length = 2.76 inches (70.2mm)


Exterior Dimensions:

Exterior width = 1.76 inches (44.7mm)

Exterior length = 3.50 inches (89.1mm)

Exterior height tall side = .375 inches (9.5mm)

Exterior height short side = .295 inches (7.5mm)

Height holes center to center = 3.07 inches (78mm)

Mounting holes center to center length = 3.185 inches (8.09mm)

Mounting holes center to center width = 1.43 inches (36.3mm)

  • Brands Aftermarket
  • Item #: HMRB-SET
  • Availability: In Stock
  • $9.00
